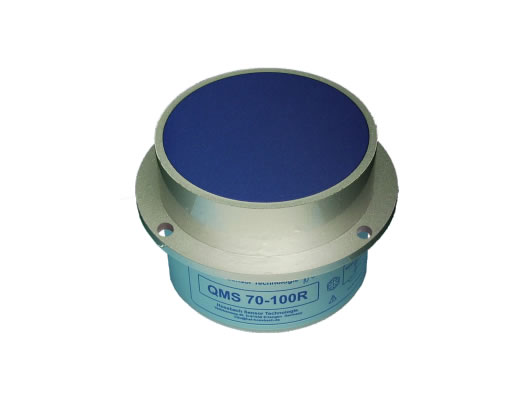

Sensor QMS 70 - 100R

single sided, round sensor

Dimension: Ø 105 x 65 mm
  • fluids control
  • fluid filling control

Features:

  • sensor for fluid measurements
  • measurement of containers, glasses, vials etc. and filled fluid quantities
  • object to be measured are moved over the sensor
  • long term stability due to self calibrating
  • switching output version for stand alone operation
  • analog output 0...+10V version
  • operations with control and analysing units like HST Flow Controller and HST Analyser
  • +24VDC +/- 10% operation voltage
  • robust aluminium housing 130 x 85 mm, tubus 105 x 85 mm

Description:

The sensor QMS 70-100R is a compact and robust sensor using an unique capacitive sensor technique as well as highly sophisticated electronics. The big single sided sensor, i. e. sensing area at the top enables weight measurement of fluids just being or already filled up in containers. The measurements may be used for checking the presence of fluids or controlling the filling process.

The demands for the ”presence of fluid” application may be covered by the sensor version with a switching output as well as the filling of a distinct preset quantity. The switching output is activated as soon as the fluid or a preset fluid quantity is detected.

Using the sensor with analogue output enables more sophisticated applications. Due to the analogue output, that delivers sensor signals between 0 and 10V proportional to the quantity measured two principal applications exist: The use of the analogue voltage by the external machine control unit or by a controlling or analysing unit from Hossbach Sensor Technologie. The best solution for controlling the filling process is achieved, when the HST Flow Controller is used. Due to its “teach” performance the filling process is calibrated and defined in a very useful way, that obviates the need for complicated calibrations by an external machine control unit.

Because of its little space requirement, the QMS 70-100R is easily integrated in filling stations or filling machines.

overview Applications

  • 01: single sided sensor : permanent measurement:

    01: single sided sensor : permanent measurement:

    • leece detection
    • material quality and quantity
    • label and glue detection
    • foreign object detection
  • 02:single sided sensor : interval measurement:

    02:single sided sensor : interval measurement:

    • foil detection
    • mass distribution in Object (profile)
    • defect detection
    • object detection
  • 03: U-shaped sensor : permanent measurement

    03: U-shaped sensor : permanent measurement

  • 04:U-shaped sensor : interval measurement

    04:U-shaped sensor : interval measurement

    • feminine napkin control
  • 05 SAP Continuous Flow Of Material Like Granulate Or Powder

    05 SAP Continuous Flow Of Material Like Granulate Or Powder

  • 06 SAP Discrete Portions Of Material Like Granulate Or Powder

    06 SAP Discrete Portions Of Material Like Granulate Or Powder

  • 07 Glue Strip Control

    07 Glue Strip Control

    • adhesive tape detection
  • 08  Position Control With Intermittently Aligned Objects

    08 Position Control With Intermittently Aligned Objects

    • feminine napkin control
  • 09 Weight Control Single Or Multi Layer Products

    09 Weight Control Single Or Multi Layer Products

    • baby diaper control
    • feminine napkin control
  • 10 Weight Distribution Control

    10 Weight Distribution Control
